Industrial Joysticks Palm Grip Type

Our Palm grip joysticks are designed with particular emphasis on operator comfort and precision control. After decades of experience working with joysticks, our technical advisers are well placed to supply customers with the ideal solution for their individual needs and always with various CANbus options.

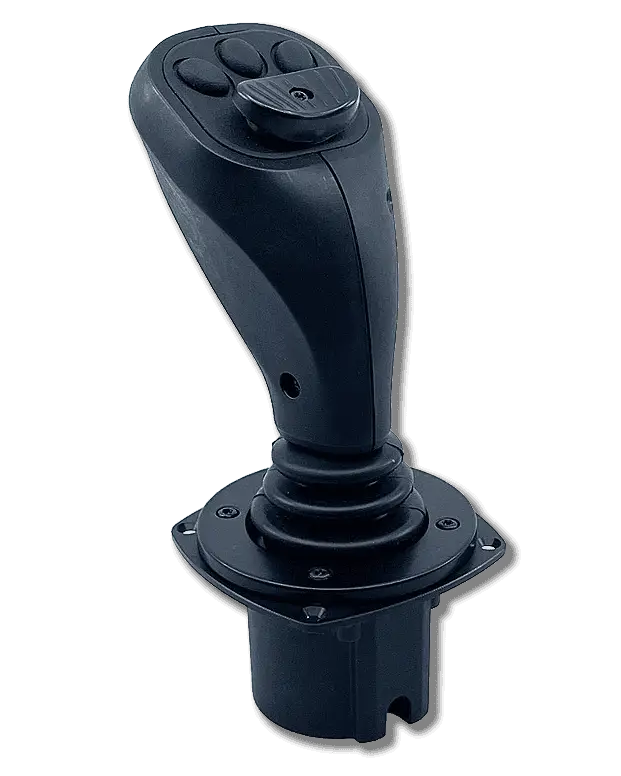

Viper Slim grip option for Caldaro industrial joystick C15

Caldaro tackled the challenge of constructing an unbreakable joystick for one of the harshest environments on earth — namely, the mining industry. The result was the C15. This joystick is the base within our Palm Grip segment.

Caldaro defines a joystick as part of two modules. The joystick base and the joystick grip attached to the base. The C15 can be combined with for example our Viper grip or the Gecko grips series. See also the C06 series.

Industrial Joysticks Palm Grip Type

C15 for Viper, Lion and Gecko grips

The C15 is an unbreakable joystick. It is used across an application spectrum from the toughest working environments to exquisitely high precision fine-tuned medical equipment.

The joystick can be fitted with numerous grips, functions and withstand the harshest conditions for your application as it is available with high protection class and customisation to its fullest.

The Viper Slim

Viper slim is a professional multifunction joystick that provides all necessary functions easily accessible to the operator’s hand. Commonly found in container trucks, mining machines, forest applications, snow removal applications and many other special vehicles.

The Viper Slim has a highly appreciated design that provides a natural resting grip for the operator’s ergonomics. Proportional steering can be performed easily with the thumb via a rocker button for maximum sensitivity and control, which means no more thumb rolling. As an option, you can even have a unique index finger controlled gear selector (F-N-R) that makes operation comfortable and distinct.

Build it after your requirements.

Features for Viper Slim

Options for Viper Slim

Articles

The Lion Grip

The Lion is a multi-functional grip made for professional usage. First developed solely for mining application. Made to endure the test of time and harsh conditions. Can be found in mining applications, snow removal machines, cranes, and other special vehicles.

Features for Lion

Options for Lion

The Gecko grips series

Our G-series consists of a great variety of grips made to fit a great variety of machines. The handles in the Gecko series is commonly used with the C15 joystick, and will give your machine perfect control.

Features for the G-grips

Articles

Screen display / Downloads

Grip Options for C15

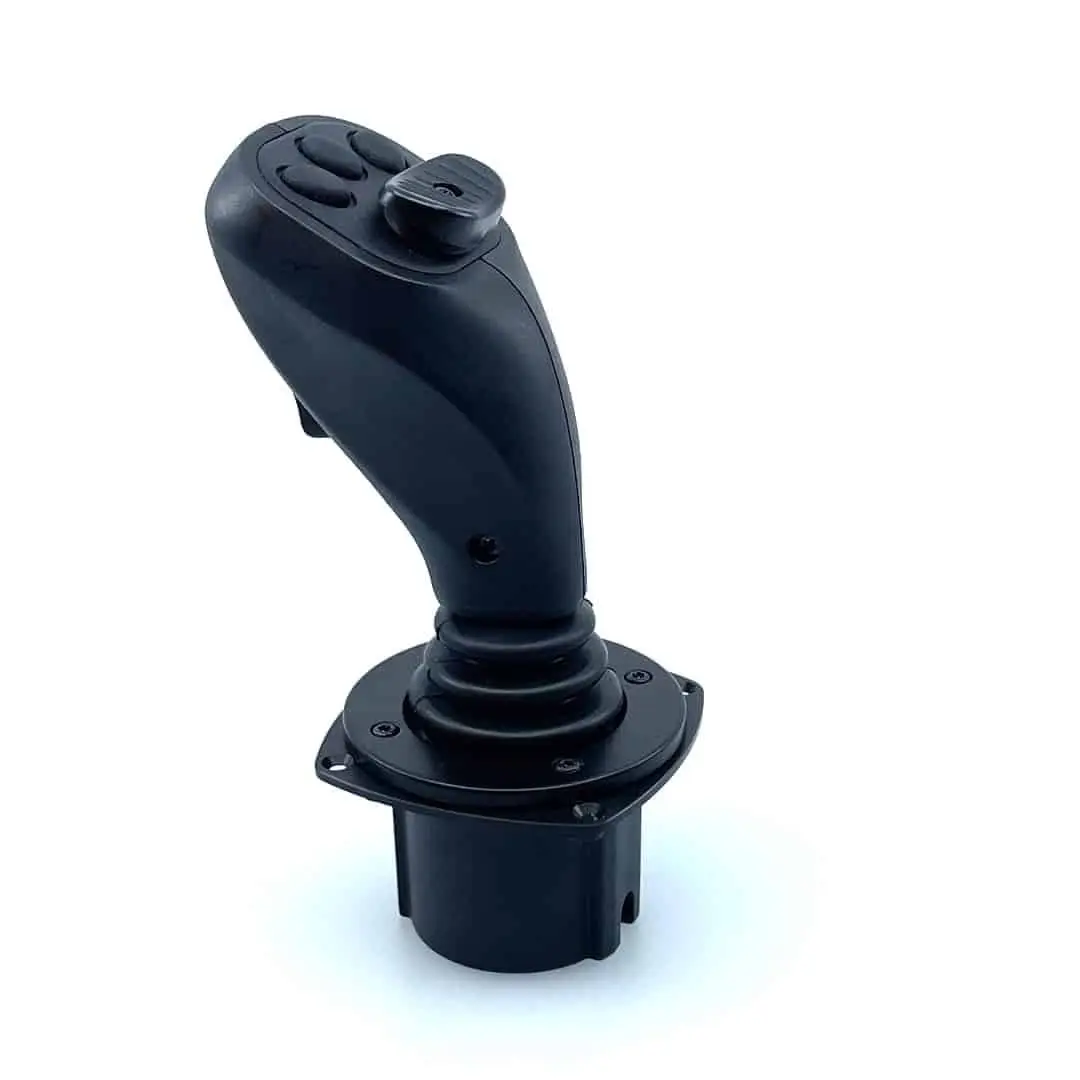

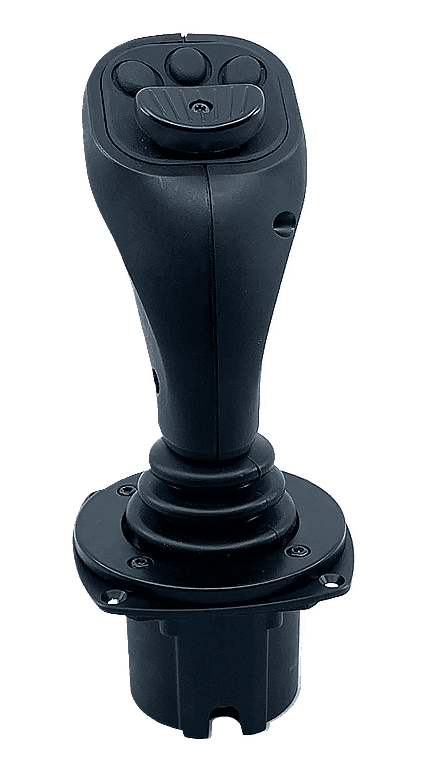

Viper Slim grip option for Caldaro industrial joystick C15

Viper Slim

Configuration on image: 5 buttons, one sensor • A capacitive sensor for “operator presence” • 2–4-axis • Height 128 mm

Lion grip option for Caldaro industrial joystick C15

Lion

Configuration on image: 6 buttons + 2 sensors for 3rd and 4th axis. • Sensors; a capacitive sensor for “operator presence” • Proportional sensors • 2–4-axis • Height 128 mm

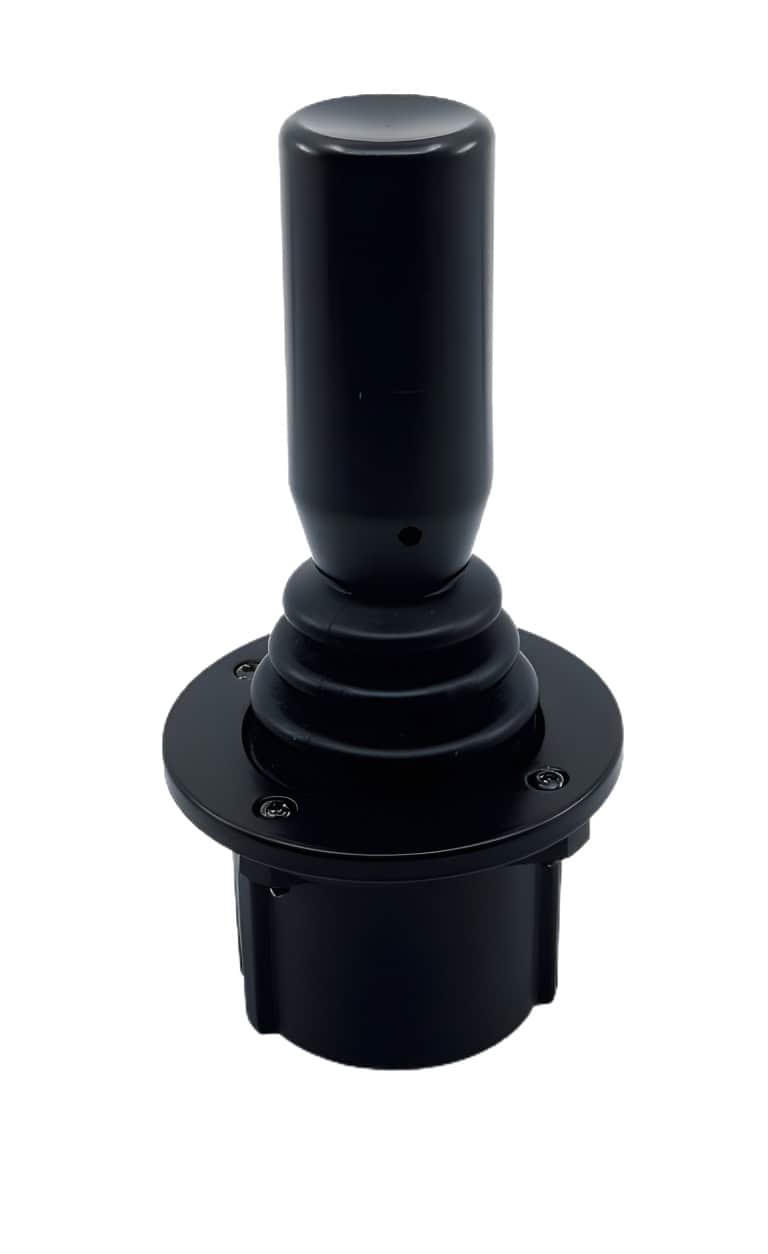

Gecko A0 (former G1) grip option for Caldaro industrial joystick C15

Gecko A0

Configuration on image: Plain robust grip • Does not include any additional functionality • Height 97,4 mm

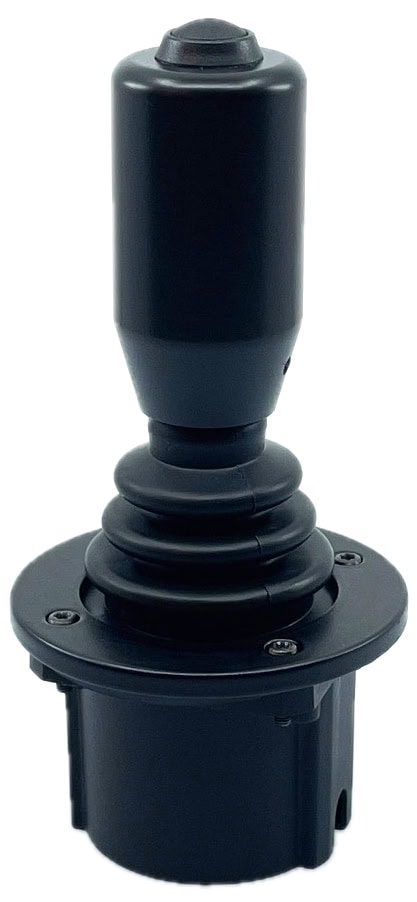

Gecko A1 (former G2) grip option for Caldaro industrial joystick C15

Gecko A1

Configuration on image: 1 momentary push button • Button specifics are customized with NO/NC • Height 103 mm.

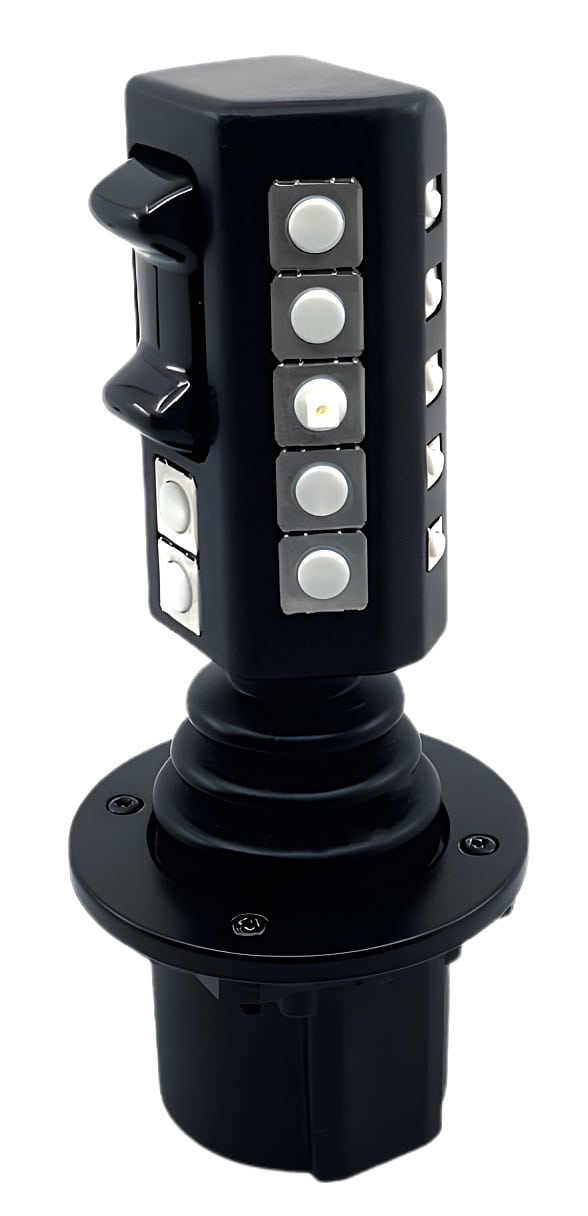

Gecko R1 (former G13) grip option for Caldaro industrial joystick C15

Gecko R12

Configuration on image: 1 Proportional hall effect thumb rocker • 10 momentary push buttons on front • 2 momentary push buttons on rocker side • Height 116 mm

Grip Options for C15 continue...

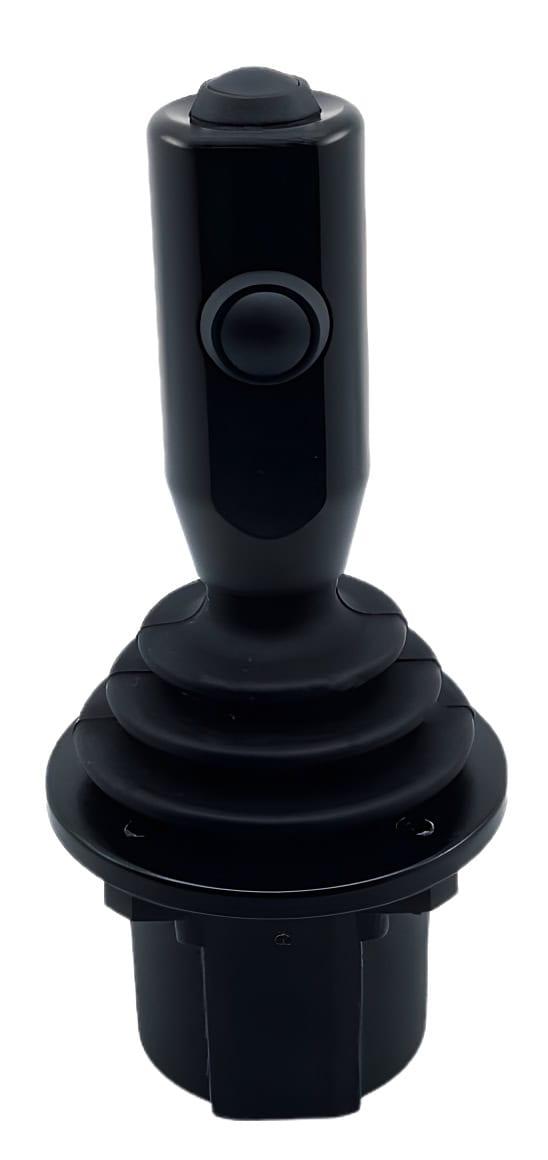

Gecko A2 (former G4) grip option for Caldaro industrial joystick C15

Gecko A2

Configuration on image: 2 momentary push buttons • Buttons specifics are customized with NO/NC • Height 110 mm

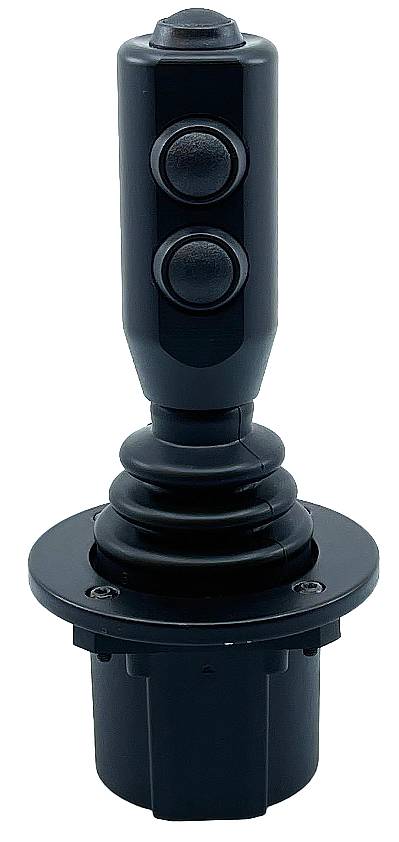

Gecko A3 (former G5) grip option for Caldaro industrial joystick C15

Gecko A3

Configuration on image: 3 push momentary buttons • Buttons specifics are customized with NO/NC • Height 110 mm

industrial,joystick,palm grip,precision,C15,Viper,Lion,G-grips,slim,G1,G2,G3,G4,G5,G6,G7,G8,G9,G10,G11,G12,G13

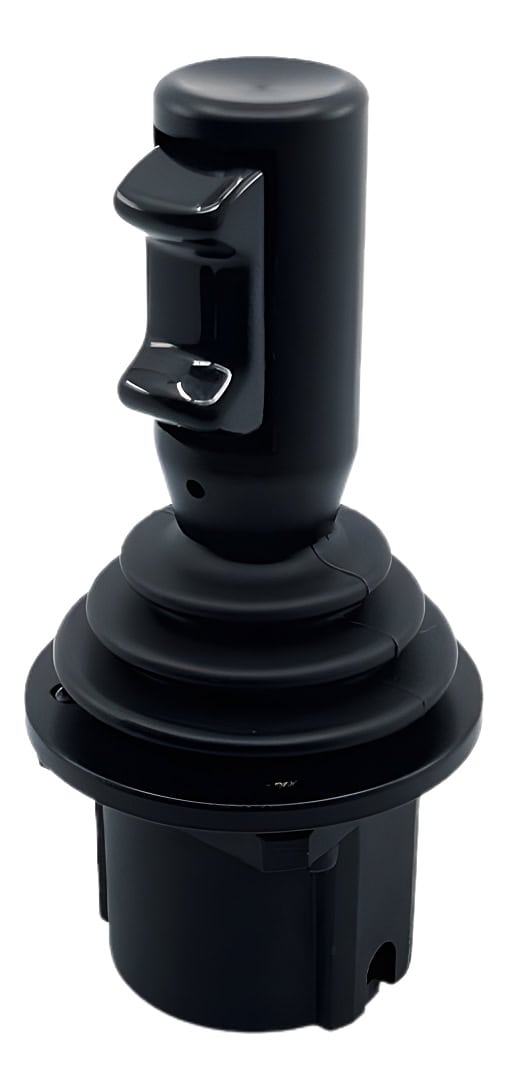

Gecko R0

Configuration on image: 1 Proportional hall effect thumb rocker • Height 97,5 mm

Gecko R1 (former G7) grip option for Caldaro industrial joystick C15

Gecko R1

Configuration on image: 1 Proportional hall effect thumb rocker • 1 momentary push button • Button specifics are customized with NO/NC • Height 117 mm

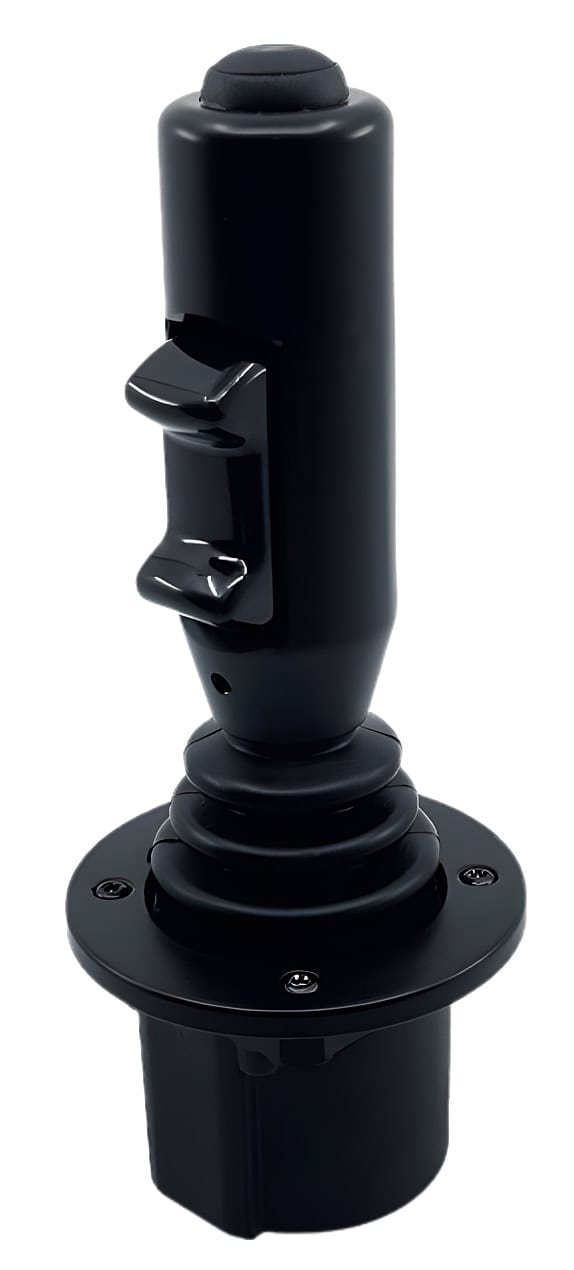

Gecko R1LED (former G8) grip option for Caldaro industrial joystick C15

Gecko R1 LED

Configuration on image: 1 latching LED push button (Optional push button specifics: Icon etc) • 1 Proportional hall effect thumb rocker • Height 128 mm

Gecko R4+1, grip options for industrial joystick palm grip type C15

Gecko R4+1

Configuration on image: 1 Proportional hall effect thumb rocker • 4 momentary push buttons on front • 1 momentary push button on top (Optional push button specifics: NO/NC) • Height 126 mm

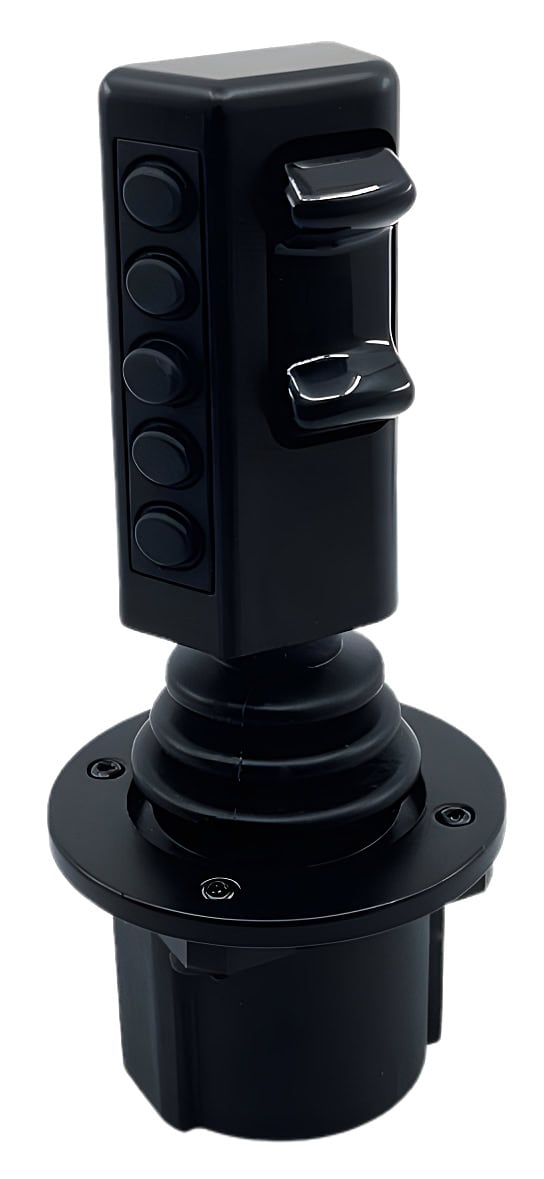

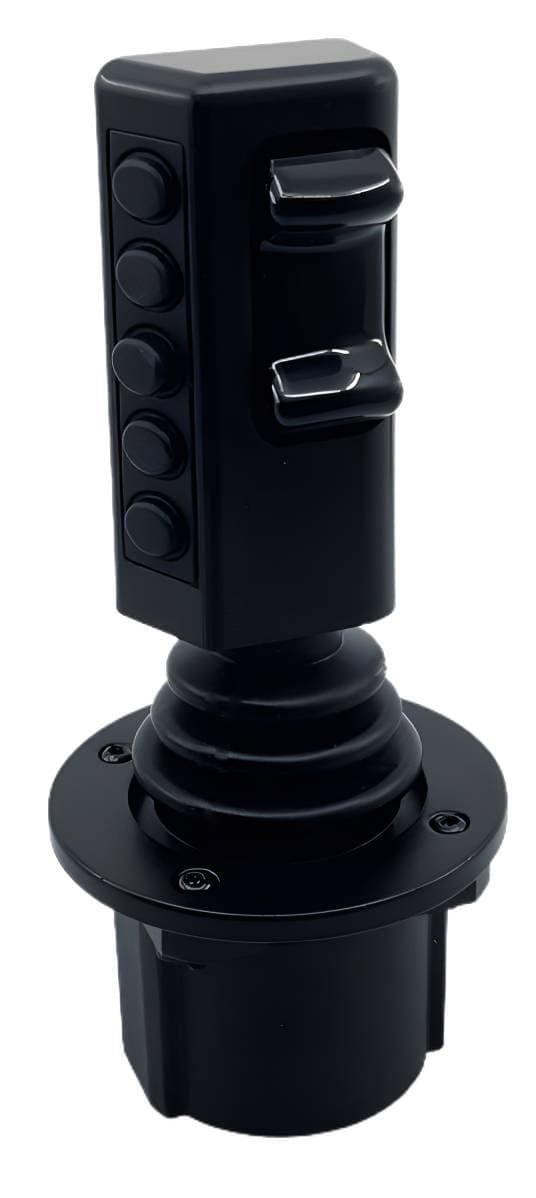

Gecko R5 (former G12) grip option for Caldaro industrial joystick C15

Gecko R5

Configuration on image: 1 Proportional hall effect thumb rocker • 5 momentary push buttons on front • Height 116 mm

Gecko R7, grip options for industrial joystick palm grip type C15

Gecko R7

Configuration on image: 1 Proportional hall effect thumb rocker • 5 momentary push buttons on front • 2 momentary push buttons on rocker side • Height 116 mm

Gecko R9, grip options for industrial joystick palm grip type C15

Gecko R9

Configuration on image: 1 Proportional hall effect thumb rocker • 5 momentary push buttons on front • 4 momentary push buttons on rocker side • Height 116 mm

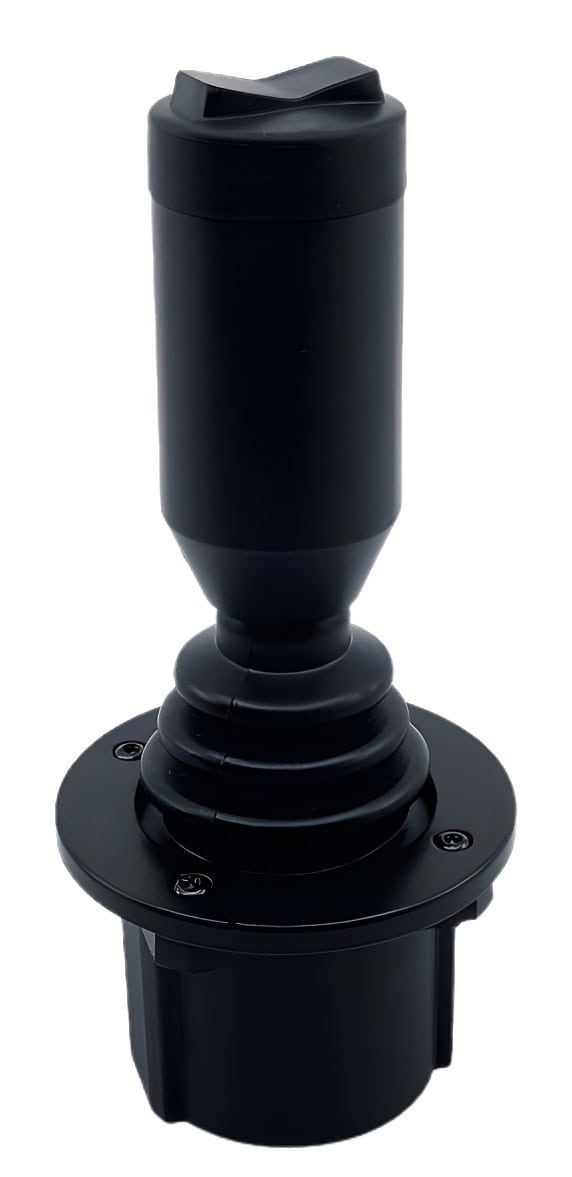

Gecko WO (former G9) grip option for Caldaro industrial joystick C15

Gecko W0

Configuration on image: 1 Rubber covered rocker button • Optional push button specifics: NO/NC • Height 114 mm

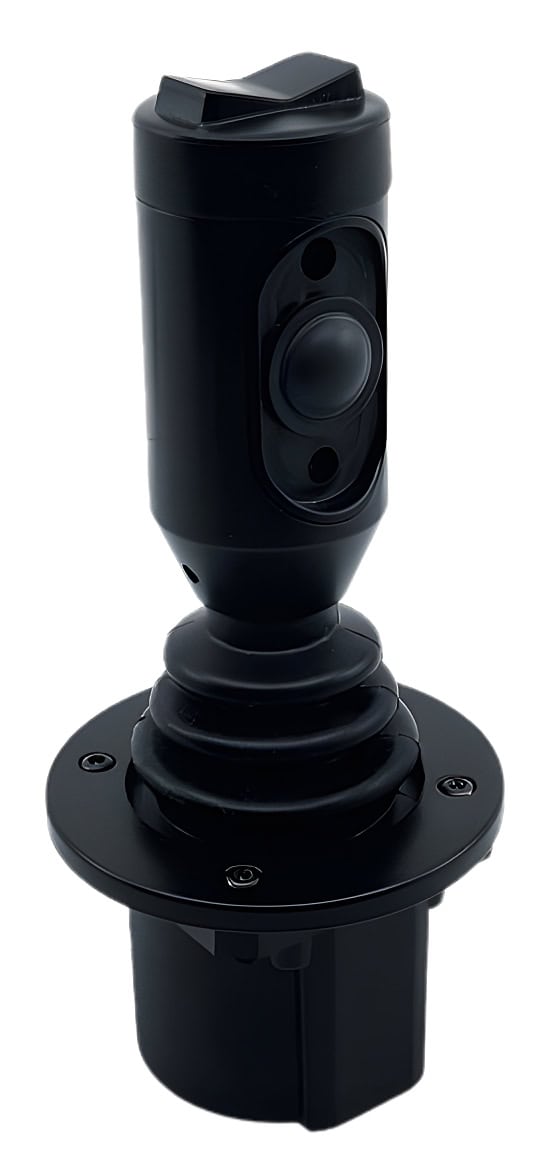

Gecko W1, grip options for industrial joystick palm grip type C15

Gecko W1

Configuration on image: 1 Rubber covered rocker button • 1 Rubber covered momentary push button • Optional push button specifics: NO/NC • Height 114 mm

Gecko W1B, grip options for industrial joystick palm grip type C15

Gecko W1B

Configuration on image: 1 momentary rocker button • 1 momentary trigger button • Buttons specifics are customized with NO/NC • Height 114 mm

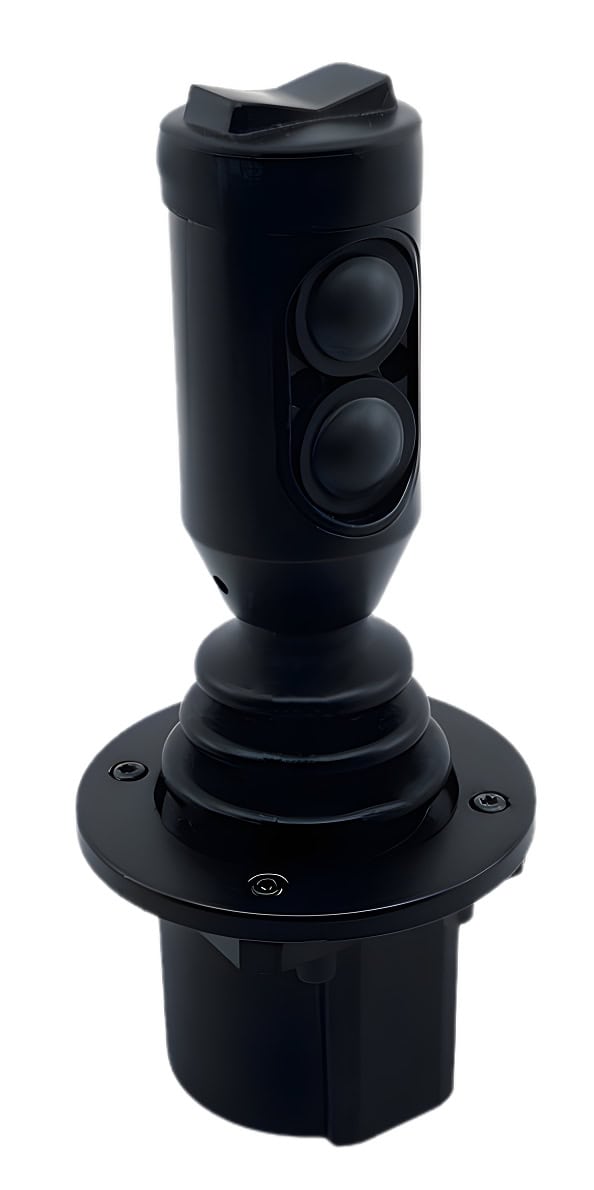

Gecko W2 (former G11) grip option for Caldaro industrial joystick C15

Gecko W2

Configuration on image: 1 Rubber covered rocker button • 2 Rubber covered momentary push button • Optional push button specifics: NO/NC • Height 114 mm

Gecko WR (former G10) grip option for Caldaro industrial joystick C15

Gecko WR

Configuration on image: 1 Rubber covered rocker button (Optional push button specifics: NO/NC) • 1 Proportional hall effect thumb rocker • Height 114 mm

Industrial Joysticks Palm Grip Type

The C06 series

The C06 is a highly versatile joystick that can be customised in almost any configuration. That makes it suitable for the most special applications. It is available with a wide range of grips, and in its standard configuration, it is fitted with long-life potentiometers. However, it is, of course, also available with hall sensors if needed. Please let us know how you would like it!

Downloads

Grip Examples for C06

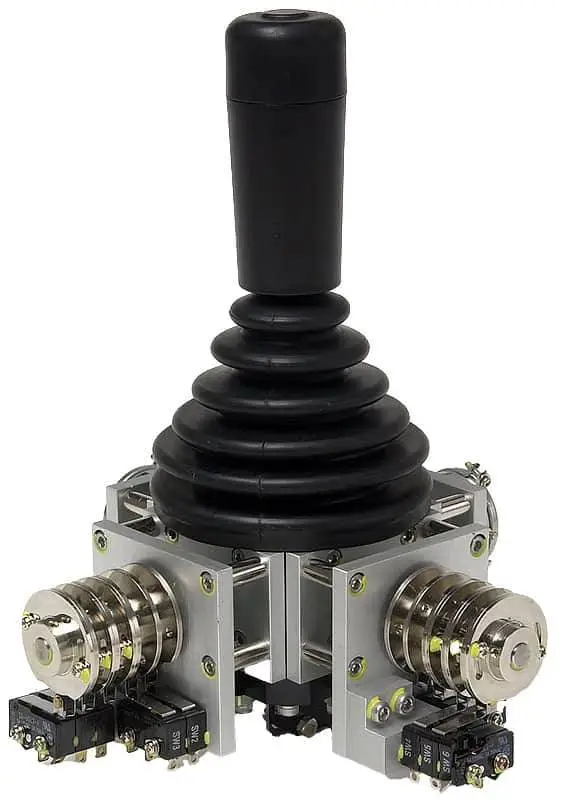

ZC06 example

C06 series

Available with a wide range of grips

ZC06 example 1

ZC06

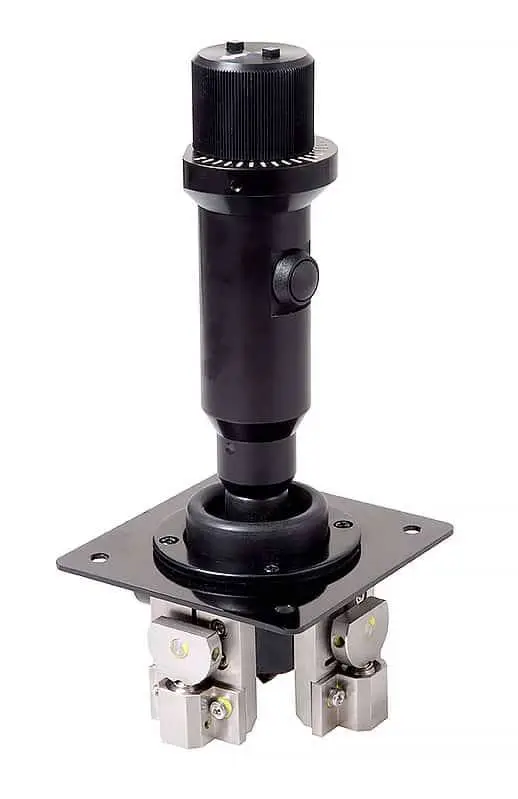

Example 1: Friction-hold joystick with a third Z-axis rotational knob. Two push buttons in the knob and one push button on the shaft. This one was designed for a maritime application.

ZC06 example 2

ZC06

Example 2: Multi-functional joystick with three analogue functions in the grip.

ZC06 example 3

ZC06

Example 3: Very well-sealed joystick with a toggle switch on top. Commonly used in demolition robot applications.

ZC06 example 4

ZC06

Example 4: Joystick with ganged long-life potentiometers for redundancy fitted with a two-push button aluminium grip.

ZC06 example 5

ZC06

Example 5: Two-axis joystick with friction hold on one axis and spring return on the other, fitted with a sealed one-push button grip.

ZC06 example 6

ZC06

Example 6: A special three-axis joystick with one of the axis moving vertically, up and down, also fitted with directional switches.

Contact

Please contact us and let us help you to get the perfect product for your application.
